U-PLEX Human MIP-5 Assay


U-PLEX Human MIP-5 Assay Overview
The U-PLEX Human MIP-5 Assay maximizes your flexibility to design an experiment that measures MIP-5 alone or multiplexed with other MSD U-PLEX assays, your own antibody pairs, or a combination of both. This assay accurately quantitates native and recombinant human MIP-5 in multiple sample types. To learn more about the advantages of U-PLEX assays click here.

U-PLEX Human MIP-5 Assay Features
  • Measures human MIP-5 in serum, plasma, and cell culture supernatants
  • Dynamic range: 0.34 pg/mL – 30,000 pg/mL
  • LLOD: 0.34 pg/mL

Typical Data
Calibration curve accuracy and precision for the U-PLEX Human MIP-5 assay were assessed and representative data are presented below.

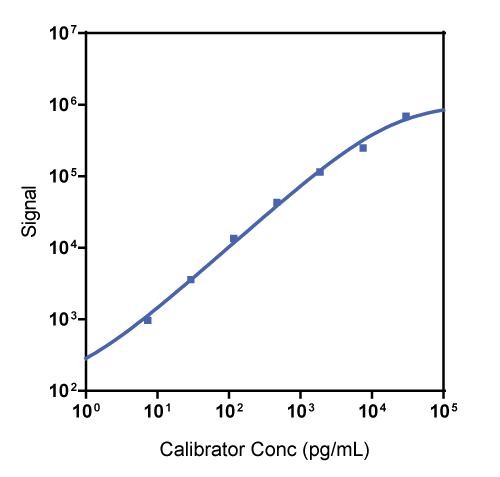

Figure 1. U-PLEX Human MIP-5 Calibration Curve
Human MIP-5 Calibrator Curve
Figure 2. U-PLEX Human MIP-5 Data
Human MIP-5 Calibrator Curve Data
MIP-5 Analyte

Description - Human macrophage inflammatory protein 5 (CCL15, LKN1, SY15, SCYA15, MIP-1δ; Gene ID: 6359) is a member of the CC chemokine family that binds to both CCR1 and CCR3 receptors. It is chemoattractant for T cells and monocytes.

Disease Focus/Application Area - Autoimmune disorders including rheumatoid arthritis.

Note - In-house data indicate that a large sample dilution is required to generate optimal results. Refer to the datasheet for additional information.
