U-PLEX NHP IL-22 Assay


U-PLEX NHP IL-22 Assay Overview
The U-PLEX NHP IL-22 Assay maximizes your flexibility to design an experiment that measures IL-22 alone or multiplexed with other MSD U-PLEX assays, your own antibody pairs, or a combination of both. To learn more about the advantages of U-PLEX assays click here.

U-PLEX NHP IL-22 Assay Features
  • Measures NHP IL-22 in serum, plasma, and cell culture supernatants
  • Dynamic range: 0.13 pg/mL – 3,400 pg/mL
  • LLOD: 0.13 pg/mL

Typical Data
Calibration curve accuracy and precision for the U-PLEX NHP IL-22 assay were assessed and representative data are presented below.

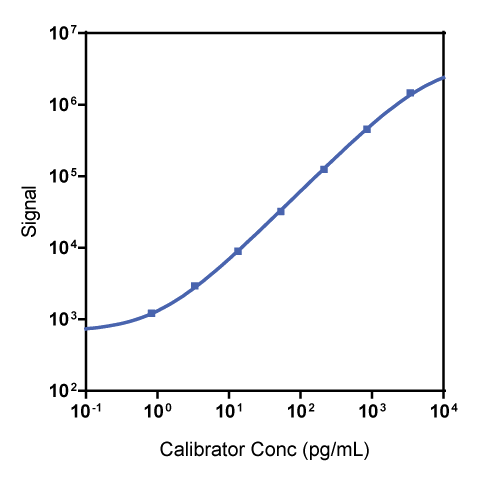

Figure 1. U-PLEX NHP IL-22 Calibration Curve
NHP IL-22 Calibrator Curve
Figure 2. U-PLEX NHP IL-22 Data
NHP IL-22 Calibrator Curve Data
IL-22 Analyte

Description - NHP interleukin 22 (TIFa, IL-TIF; Gene ID: 718047) is a homodimer that is secreted by activated T cells, especially Th17 cells and NK cells. IL-22 signals through a heterodimeric receptor composed of IL-22R and IL-10Rβ that is expressed primarily on epithelial cells, promoting their proliferation.

Disease Focus/Application Area - Psoriasis, Crohn’s disease, ulcerative colitis, graft-versus-host disease, certain tumors, and liver damage.
